Keysight DAQM908A Multiplexer, Single-Ended, 40 Channel, 300V, 10MHz, For DAQ970A, DAQ973A

DAQM908A 40-Channel Low-Frequency Single-Ended Multiplexer Module

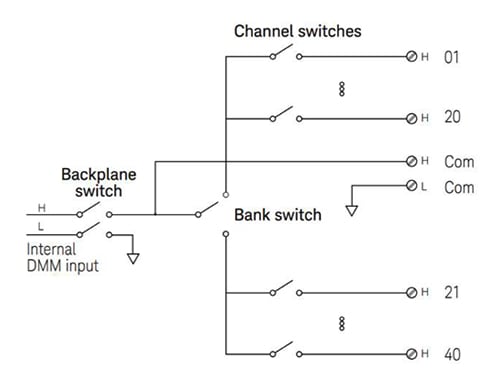

Use the Keysight DAQM908A for the greatest density in common low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. The module low connection is isolated from earth and can float up to 300 V. The DAQM908A is capable of connecting to the DAQ970A/DAQ973A internal DMM.

Key Features:

• 100 ch/s scanning

• Single-wire switching for common low applications

DAQ970/73A Data Acquisition System Mainframe Highlights

The 3-slot mainframe for housing DAQ plug-in modules (sold separately) has the benefit of proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. Mix and match by choosing from 10 switch, RF and control plug-in modules to get just the functionality you need right now - then change or add more channels later as your application grows.

As accurate as the best bench DMM available, the DAQ970A/DAQ973A features 6 1/2 digits (22 bits) of resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you’ve got the speed and accuracy you need to get the job done right.
