Fluke Networks SFPOWERMETER Simplifiber Pro Power Meter

The SFPOWERMETER is the meter only. SimpliFiber Pro Optical Fiber Test Kits provide all the tools needed to verify proper installation and maintain fiber‑optic cabling systems. Each kit includes several specialized fiber platforms: the power meter, the multimode or singlemode sources, and the FindFiber Remote ID source. Every platform offers distinct, competitive features and is bundled into convenient kits designed to meet the demands of today’s technicians.

Product Highlights

• Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record

• CheckActive feature emits an audible tone and displays an icon when a live fiber is detected

• FindFiber Remote ID enables one individual to quickly identify cable connections or routings (requires remote ID sources sold separately)

• Min/Max capability automates precision tracking of intermittent power fluctuations

• Large internal memory save 1000 results which enables continuous testing and recording

• LinkWare Cable Test Management software helps to analyze test results and create professional test reports

Optical Power Meter to Improve Fiber Testing

The SimpliFiber Pro meter features the ability to store a reference power level, enabling a direct display of fiber loss. It also includes an intuitive four‑button control panel, a large LCD screen, and a serial port. A single connector design allows simple network connection and straightforward reference power measurement. Time-saving capabilities such as CheckActive, FindFiber, and Min/Max make SimpliFiber Pro one of the best meters on the market. In addition, interchangeable connector adapters are available in the most commonly used styles. This makes the tester versatile across different fiber installations.

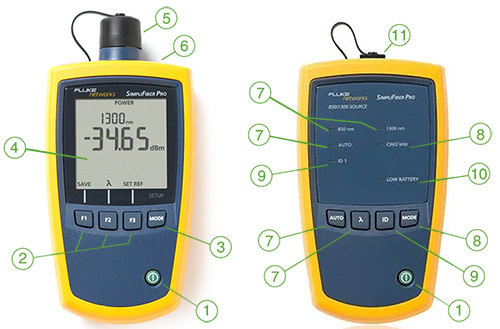

SimpliFiber Pro And Multimode Features

1. On/off key

2. Softkeys (to functions on display)

3. Measurement mode

4. LCD Display

5. Input port

6. USB port

7. Auto wavelength mode

8. Continuous wave & 2kHz modulated output signals

9. Selects FindFiber mode

10. Low battery LED

11. Output port with SC adapter

The SimpliFiber Pro Optical Power Meter is calibrated for accuracy at six different wavelengths (850, 1300, 1310, 1490, 1550, 1625). The meter’s single connector permits simple network connection and straightforward reference power measurement.

The multimode source (right) is a dual wavelength 850/1300 source and incorporates an 850 nm LED and a 1300 nm LED. A singlemode source has central wavelength of 1310 nm and 1550 nm. Sources sold separately.

What's in the Box

Simplifiber Pro Optical power meter

SC adapter
