Keysight B2902B Precision Source Measure Unit, 2 Chan, 100fA Resolution, 210V, 3ADC, B2900B Series

Our Part #34473.1

Mfr Part #B2902B

Keysight B2902B
Keysight
Keysight

Keysight B2902B Precision Source Measure Unit, 2 Chan, 100fA Resolution, 210V, 3ADC, B2900B Series

Our Part #34473.1

Condition:New

Mfr Part #B2902B

$14,547.00EACH
Quantity on Order:9

B2900B/B2900BL Series Precision Source/Measure Unit

A revolutionary source/measure solution with easy-to-use GUI

  • Innovative GUI: I-V (current - voltage) measurement without PC programming
  • High sourcing & measurement resolution: 10 fA/100 nV
  • Wide application coverage: 210 V, 3 A DC/10.5 A pulsed
  • Minimum digitizing interval: 10 μsec
  • Multiple software control options, allowing you to choose the solution that best fits your particular application

  • Typical applications
  • Optical devices (laser diodes, photo diodes)
  • Organic devices (OLEDs)
  • Photovoltaic (solar) cells
  • Nano-technology materials
  • Power management devices (LDOs)
  • Semiconductor devices (FETs, transistors)
  • Resistors, diodes, varistors, and other component devices

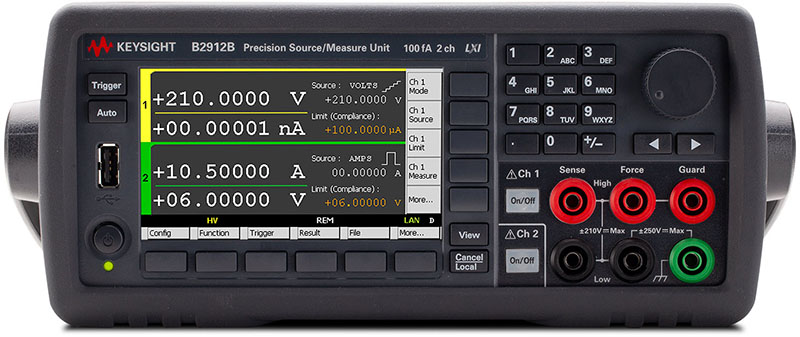

  • Keysight B2900B & B2900BL Series Precision Source Measure Unit


    FeaturesBenefits
    Integrated 4-quadrant sourcing and measuring capabilitiesEasily and accurately measure current and voltage using a single instrument without the need to manually change any connections
    Measurement range: ±210 V, ±3 A (DC), ±10.5 A (pulsed)A single SMU product covers both high voltage and high current measurement needs, allowing for more standardization and simplifying inventory and support concerns.
    Source and measurement resolution down to 10 fA and 100 nVCan make low-level measurements using a low-cost bench-top SMU that were previously only possible using a more expensive semiconductor device analyzer.
    User-friendly front panel GUI with 4.3 inch color LCD display supports both graphical and numerical view modesCan quickly and easily perform measurements and display data on the front panel, thereby greatly speeding up interactive test, characterization and debug operations.
    10 microsecond digitizing capabilityCan capture low frequency phenomena in addition to DC characteristics
    PC-based control softwareCan make measurements remotely from a PC without the need to program.
    Supports both conventional and default SCPI commandsConventional SCPI commands provide some compatibility with older SMU code (such as Keithley 2400 series) to minimize code conversion work. Default SCPI commands support advanced B2900B/BL Series features
    Small form factor with USB2.0, LAN, GPIB and digital I/O interfacesEasy integration into rack and stack systems.

    Get Rapid and Accurate Measurement Results

    The Keysight B2900B/BL Series Precision Source/Measure Units are compact and cost-effective bench-top Source/Measure Units (SMUs) with the capability to source and measure both voltage and current. These capabilities make the B2900B/BL Series SMU ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy.

    The B2900B/BL Series SMU has a voltage maximum of ±210 V, a current maximum ±3 A DC, and ±10.5 A pulsed sourcing capabilities. With a precision minimum of 10 fA/100 nV sourcing and measuring resolution, a color LCD graphical user interface (GUI) and several task-based viewing modes will improve your productivity for test, debug, and characterization.

    The B2900B/BL Series SMU offers superior measurement throughput and supports conventional SMU SCPI commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test.

    The B2900B/BL Series SMU consists of six models — the B2901BL, B2910BL, B2901B, B2902B, B2911B, and B2912B. The differentiation between the models is according to their available features: output range, number of digits displayed, measurement resolution, minimum timing interval, viewing modes, and SMU channels. These model choices make it easy for selecting the performance and price you need for your testing requirements.

    Furnished Accessories
  • Power cable
  • USB cable
  • Quick Reference (English)

  • Brand: Keysight
    Number of Channels: 2 Channel
    Series: B2900B Series
