Keysight 85521A Mechanical Calibration Kit, OSLT, DC to 26.5GHz, 4in1, 3.5mm(f), 8522xA Series

Our Part #20992.1

Mfr Part #85521A

Keysight 85521A
Keysight
Keysight

Keysight 85521A Mechanical Calibration Kit, OSLT, DC to 26.5GHz, 4in1, 3.5mm(f), 8522xA Series

Our Part #20992.1

Condition:New

Mfr Part #85521A

$EACH
Available For Rent

Description

The 85521A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with female-female connectors. During the "thru" part of the calibration, the 85521A through can be used.

Key Features & Specifications
  • Type-3.5 mm (f), 50 ohm, open, short, load, and through
  • DC to 26.5 GHz
  • Open phase error: 0 to 5 GHz ≤ 1.5°, 5 to 15 GHz ≤ 3.0°, 15 to 26.5 GHz ≤ 4.5°
  • Short phase error: 0 to 5 GHz ≤ 1.0°, 5 to 15 GHz ≤ 2.5°, 15 to 26.5 GHz ≤ 4.0°
  • Load return loss: 0 to 5 GHz ≥ 42 dB, 5 to 15 GHz, ≥ 36 dB, 15 to 26.5 GHz, ≥ 32 dB
  • H x W x D ~ 68 x 37 x 14 mm

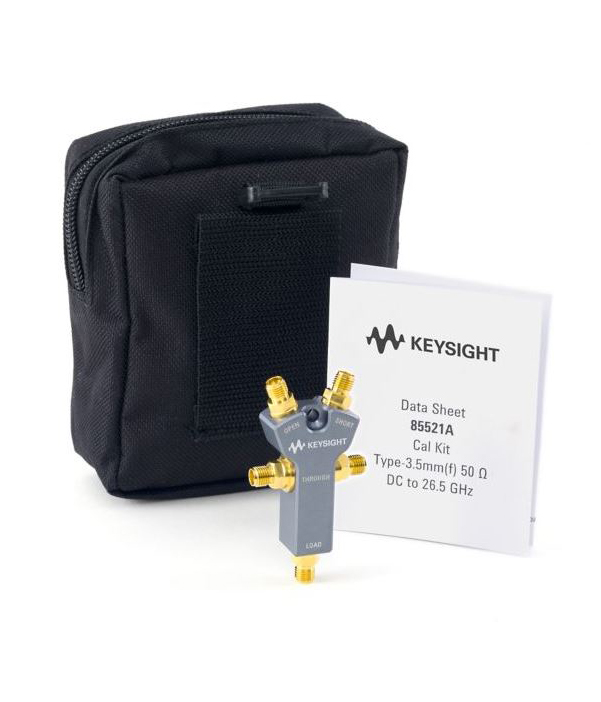

Keysight 85521A Mechanical Calibration Kit

Brand: Keysight
Type: Mechanical OSLT
Frequency: DC to 26.5GHz
Connector Type: 3.5mm(f)
Number of Ports: NA
Impedance: 50 Ohm
Series: 8522xA Series
