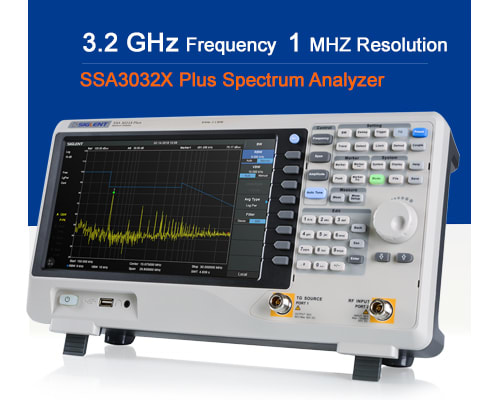

Siglent SSA3032X Plus Spectrum Analyzer

The SSA3032X Plus Spectrum Analyzer offers a frequency range of 9 kHz to 3.2 GHz. With its compact size, and friendly user interface, it presents an easy-to-read display, powerful and reliable automatic measurements, multiple operating modes and plenty of impressive features. In addition to its core spectrum analysis function, optional features include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI testing.

Features and Specifications

• 9kHz to 3.2GHz Frequency range

• 1Hz to 1MHz Resolution bandwidth

• < -98 dBc/Hz Phase noise

• -161 dBm/Hz displayed average noise level (Typ.)

• < 0.7 dB Total amplitude accuracy

• +10 dBm Third order intercept

• Preamplifier Standard

• Internal (Flash) 256 MB storage, external (USB storage device) 32 GByte

• LAN, USB Device, USB Host interfaces

• Web Browser Remote Control on PC and Mobile Terminals and File Operation

• 10.1 in Multi-Touch Screen, Mouse and Keyboard supported

Optional Series Features:

• Analog and Digital Signal Modulation Analysis Mode*

• Reflection Measurement Kit*

• EMI Measurement Mode*

• Advanced Measurement Kit*

*New SSA3000X Plus instruments offer approx. 100 hours of free trials of these options

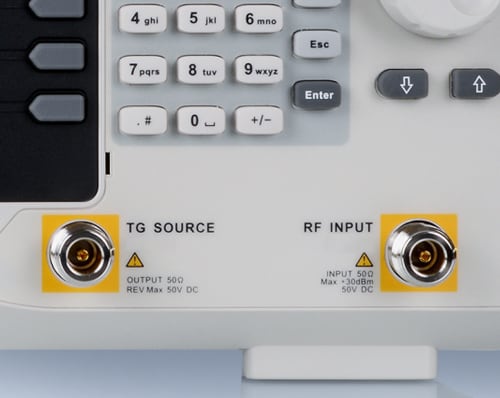

Tracking Generator

A tracking generator is a swept RF source that follows the analyzer frequency steps. It's typically used to test filters, amplifiers and cables. The tracking generator hardware from Siglent is included with all versions of the SSA3000X Plus family of spectrum analyzers.



All-Digital IF Technology

Siglent’s SSA3000X Plus Series of spectrum analyzers incorporate an all-digital intermediate frequency (IF) processing system. This core technology is designed to be faster, provide better resolution, and better accuracy compared to traditional analog IF designs. Digital IF allows for greater flexibility in signal analysis and processing, which is vital for modern applications like wireless communication testing (Wi-Fi, Bluetooth, RFID), EMI pre-compliance testing, and general R&D in RF circuits.

Siglent SSA3000X Plus Series

The Siglent SSA3000X Plus Series spectrum analyzers are powerful and flexible tools for RF spectrum and signal analysis with a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. Typical applications for the SSA3000X Plus Series include broadcast monitoring and evaluation, site surveys, S-parameter measurements, analog/digital modulation analysis, EMI pre-compliance testing, research and development, education, production, and maintenance.

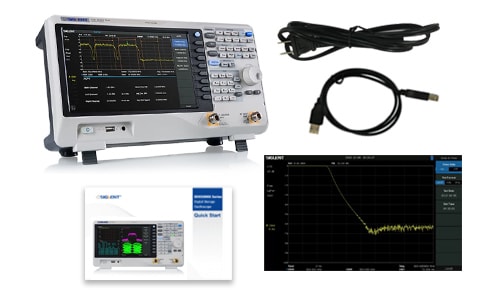

What's in the Box

• SSA3032X Plus Spectrum Analyzer

• Tracking Generator

• Quick Start

• USB Cable

• Power Cord
