R&S NGT3600 Series - NGT3622 DC Power Supply (Dual Output)

The R&S NGT3600 series delivers one or two fully independent 1800 W outputs in a compact instrument. The instruments are perfect for demanding test environments that demand power, flexibility and precision.

Advanced autoranging architecture and smart features such as arbitrary, ramp and remote sensing with up to 80 V or 50 A per output can handle everything from high-current motor drives to avionics systems.

A 4.3" touchscreen, built-in data logging and intuitive operation accelerate workflows and reduce setup errors. Whether in R&D labs or automated test systems, the R&S NGT3600 gives you the control and confidence to push your designs further.

Key Features:

• Two-Channel Power Supply

• 3600 W (1800 W per Channel), 80 V/50 A

• Up to two independent, floating outputs

• Autoranging and channel fusion

• Multi-device mode

• Connect six channels in series or parallel for up to 480 V or 300 A

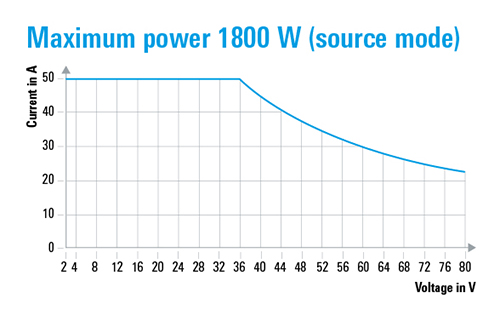

Autoranging: full power, flexible output

Autoranging lets you get the most out of each channel by delivering up to 1800 W across a wide range of voltage and current combinations. Unlike traditional single-range supplies, Autoranging adapts to your load requirements, providing high current at low voltage or high voltage at low current, always maximizing available power.

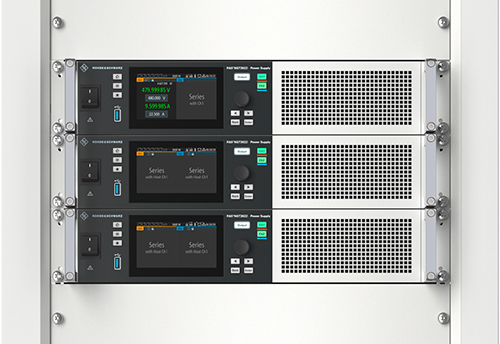

Multi-Device mode: scalable power, synchronized performance

Multi-Device mode allows you to combine up to six out-puts across multiple R&S NGT3600 power supplies in series or parallel. Any channel can be designated as the host, while the remaining channels act as clients, all oper-ating in sync under centralized control. Ideal for demand-ing applications, this mode extends your power capa-bilities whether you are building high-voltage stacks or driving high-current loads.

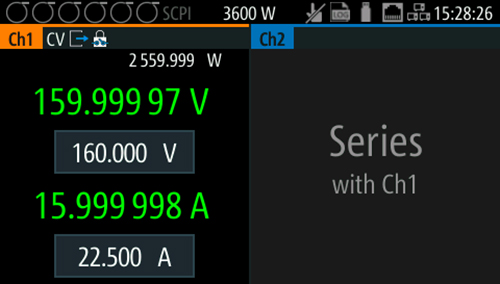

Channel fusion: double the power, double the possibilities

Channel fusion lets you combine both outputs of the R&S NGT3622 in series for higher voltage or in parallel for increased current. Ideal for applications that demand more than a single channel can deliver, this feature gives you the flexibility to scale your power supply to your project’s needs – without compromising precision or control.

In The Box:

• R&S NGT3622 DC Power Supply

• Terminal Blocks

• Quick start guide

• Safety instructions
