Megger Easyloc TX Transmitter Basic w/Grounding Set (No Bag), 33 kHz, Easyloc Series
Our Part #20002085
Condition:New
Mfr Part #Easyloc TX Transmitter
- Description
- Specifications
- Documents
Megger Easyloc Basic TX Transmitter with Ground Set/Stakes (No Bag)
This is only the transmitter and grounding accessories. The Easyloc series is a two part system (transmitter and receiver) designed for quick, straightforward operation, incorporating features that help users efficiently locate and avoid potentially hazardous power cables and other underground utilities. Easyloc is ideal for a wide range of utility and construction applications, including water, gas, power, rail, highway, and telecommunications networks. It is also well suited for contractors, groundworks and construction professionals, local authorities, civil engineering firms, street lighting installers, fencing contractors, and landscaping businesses.

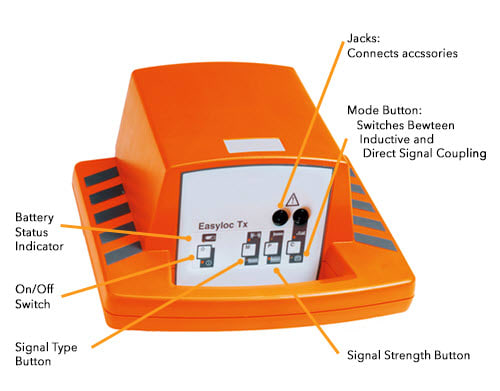

Transmitter Features
Inductive coupling of the signal using the integrated antenna or transmitter clamp
Direct (galvanic) coupling of the signal using connected equipment (such as the measurement cable and power socket adapter)
Two-step adjustable transmission power
Selectable signal output – continuous or pulsed
Transmitter Specifications (890005586)
Frequency range: 32.768 kHz
Power (switchable) : 0.1 W / 0.5 W
Rated: IP54 (Dust and water protected)
Easyloc Basic | Easyloc Standard | Easyloc Plus | Easyloc Cam | |
|---|---|---|---|---|
Version Notes | No depth measurement | TX, RX | TX, RX Extended frequency selection | Used for location of probes |
Passive Frequencies | Radio: 15 kHz - 23 kHz, Power: 50 Hz - 250 Hz, | Power: 50 Hz / 60 Hz | ||
Active Frequencies | 33 kHz | 33 kHz | 100 Hz /120 Hz | 512 Hz , 640 Hz |
Depth measurement | N/A | Cables: 0.3 m - 5 m | Cables: 0.3 m - 5 m | Sondes: 0.3 m - 7 m |
Output power | 0.1 W , 0.5 W | 0.1 W , 0.5 W | 0.1 W, 0.5 W, 2 W | N/A |
Application | Cable location | Cable location | Cable and pipe location | Sonde and camerahead location |
What's in the Box
Easyloc Tx Basic Transmitter set (890005586)
Grounding set
Ground stake
User manual (English)
Megger Easyloc Tx Basic Transmitter FAQ
What signal coupling methods does the Easyloc Tx transmitter support?
The transmitter supports both direct (galvanic) coupling and inductive coupling using its integrated antenna or optional transmitter clamp.Can the Easyloc Tx output either a continuous or pulsed signal, and how does that affect line locating and depth measurement?
The transmitter allows selection of continuous or pulsed signal output. The pulsed signal can help distinguish the transmitted signal from interference and conserve battery life, while continuous mode is required for depth measurements (available on the TX Plus Transmitter).Can the transmitter signal be coupled through a transmitter clamp without disconnecting a cable?
Yes. The transmitter signal can be coupled onto easily accessible cables with the aid of a transmitter clamp. In doing so, it is not necessary to disconnect the cables.
