Keysight N6702C Power System Mainframe

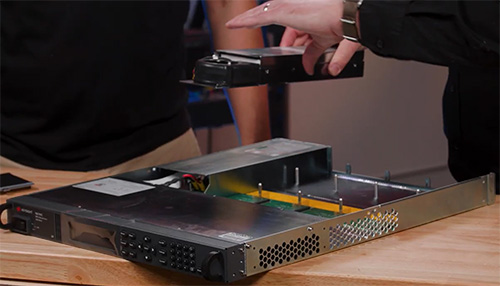

Keysight N6702C is a 1200 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6701C offers GPIB, LAN, and USB interfaces standard, and LXI compliance. Mix-and-match over 30 DC power modules, ranging in capability from basic to high precision.

Key Features

• N6702C Power System Mainframe holds 1 to 4 modules

• 1200 W total when operating from 200 - 240 VAC input, 600 W total when operating from 100 - 120 VAC input

• Choose from more than 30 different dc power modules (sold separately)

• Programmable voltage and current

• Fast command processing time

• Outputs can be connected in parallel or series

• Programmable overvoltage & overcurrent protection

• 10 store-recall states, output sequencing

• Oscilloscope-like digitizer & ARB output (with N6750/60 Power Modules)

• Streamline tasks with front panel control and advanced programmable including automated sequencing of up to 512 output settings

• Synchronize to other events in your ATE system with advanced hardware and software triggering

• GPIB (SCPI), USB 2.0, LAN / LXI Class C Compliant

• Universal AC input, power factor correction

• Small size - Only 1.75 inches (1U) of rack space

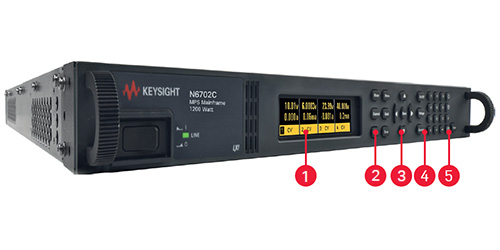

Front Panel

In addition to full control over its three standard interfaces, the N6700 has a full featured front panel to permit easy manual operation for test prototyping, debugging, and troubleshooting when used in an ATE system. You can have confidence that the N6700 is working properly because you can view the settings and actual output values on all four outputs at the same time.

1. Bright LCD display

2. System keys

3. Navigation keys

4. Output keys

5. Numeric entry keys

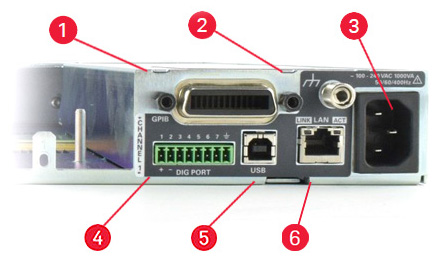

Connectivity

The N6700 MPS comes standard with GPIB, USB 2.0, and 10/100 Base-T Ethernet LAN interfaces. While GPIB is best suited for use with existing systems, Keysight offers USB and LAN to allow you to take advantage of the availability, speed, and ease-of-use of common computer industry standard interfaces. The N6700 is fully compliant with the LXI Class C specification. The N6700 can be controlled via a standard web browser. The N6700 contains a web server that provides web pages for monitor, control, and setup of the MPS.

1. GPIB interface connector

2. Ground Chassis ground binding post

3. IEC320connector AC input connector

4. Digital connector Pin functions are user-configurable

5. USB interface connector

6. LAN 10/100/1000Base-T

High-Speed Test Extensions

To make your testing go even faster, the N6700 DC power modules offer HighSpeed Test Extensions (HSTE). This enhancement to the DC power modules extends the capabilities to include features similar to a built-in arbitrary waveform generator and a built-in oscilloscope. HSTE is optional on the N6730/40/50/70 DC power modules (option 054). HSTE is standard on the N6760 precision DC power modules, the N6780 SMU modules, the N6783 application-specific modules, and the N6790 Electronic Load series modules.

Power Modules for the N6700 Modular Power System

The Keysight N6700 Series Power Modules offer a wide range of power levels—from 20 W to 500 W—with diverse voltage and current combinations, giving you the flexibility to balance performance, cost, and power to suit your specific test requirements. Designed for seamless integration into automated test environments, each module features built-in voltage and current measurement, simplifying wiring and reducing system complexity. Safety is paramount: every module includes protection against over-voltage, over-current, and over-temperature, and can detect fault conditions in neighboring modules within 10 microseconds, enabling rapid shutdown to safeguard your device under test (DUT). With BenchVue software compatibility, users gain intuitive control and data visualization, streamlining test setup and execution for both bench and system-level applications.

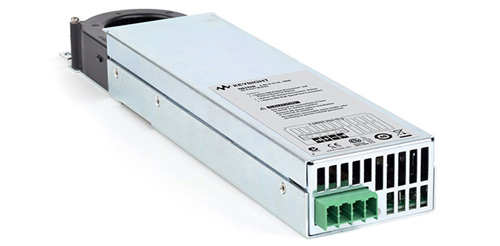

Basic DC Power Module

The Keysight N6730, N6740 and N6770 families of DC power modules provide programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

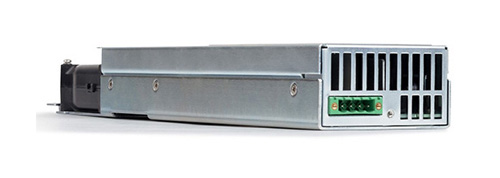

High-Performance, Auto-Ranging DC Power Modules

The Keysight N6750 family of high-performance, autoranging DC power modules provides low noise, high accuracy and programming speeds that are up to 10 to 50 times faster than other programmable power supplies. In addition, Keysight has for the first time included high-speed test extension in general purpose power supplies. The high-speed test extension offers an oscilloscope-like digitizer that simplifies system configuration and increases measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT). In addition, autoranging output capabilities enable one power supply to do the job of several traditional power supplies.

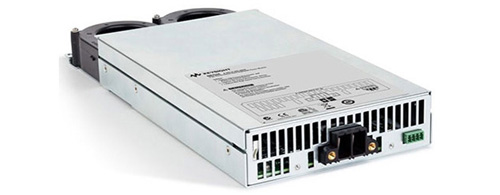

Precision DC Power Modules

The Keysight N6760 family of precision DC power modules provides precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer.

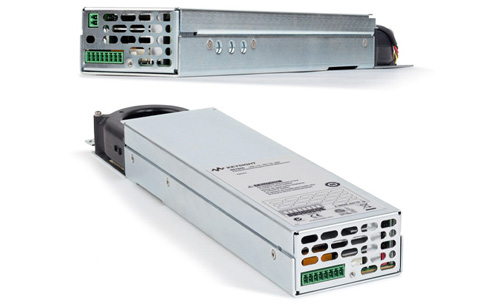

Source/Measure Units (SMUs) & Application-Specific Modules

The Keysight N6780 series of modules consists of source/measure units and application-specific modules. The N6781A, N6782A, and N6784A, N6785A, and N6786A SMUs provide advanced features, precise control and measurements of voltage and current down to the microampere and nanoampere regions. They provide stable, glitch-free output voltage and current during high-speed load changes, fast output modulation, and high-speed measurements of both voltage and current simultaneous. The N6783A applications-specific modules provide capabilities necessary for their respective applications, battery charge/discharge and mobile device manufacturing.

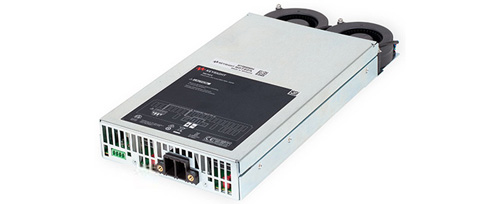

Electronic Load Modules

The Keysight N6790 family of electronic DC load modules provide sinking capability of up to 200W in a 1U height modular platform. In the N6700C series mainframe up to four N6791A or up to two N6792A electronic DC load modules can be configured, allowing up to 400 watts of total maximum power.
