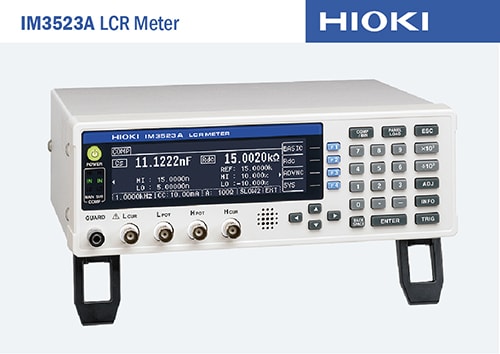

Hioki IM3500 Series - IM3523A LCR Meter

The HIOKI IM3523A LCR Meter is an impedance measuring instrument that features high-speed, highprecision operation. With measurement frequencies of 40 Hz to 200 kHz and measurement signal levels of 5 mV to 5 V, the instrument allows you to configure a broad range of measurement conditions. Additionally, the ability to perform tests using different measurement conditions with a single instrument while changing setup profiles easily makes the IM3523A well suited for use on production lines.

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523A is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.

Key Facts:

• ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)

• Rapid 2 msec test time

• Built-in comparator and BIN functions

• Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz)

• LAN interface only; options for RS-232C or GP-IB are not available - see IM3523 for those options.

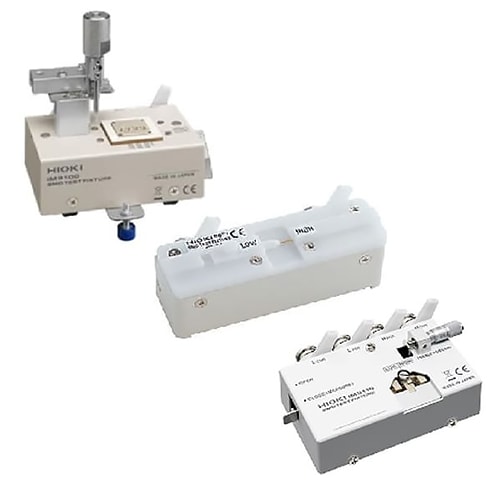

Use with Multiple Test Fixtures

The IM3523A can be used with multiple test fixtures. (sold separately).

• IM9100 - Measurable range: DC to 8 MHz, For SMD with electrodes on bottom, Measurable sample sizes: 01005 to 0402 (EIA) 0402 to 1005 (JIS) , Direct connection type

• IM9110 - Measurable range: DC to 1 MHz, For SMD with electrodes on side, Measurable sample sizes: 008004 (EIA), 0201 (JIS), Please contact Hioki for information about other sizes, Direct connection type

• 9677 - Direct connection type, Electrodes on side for SMD, DC to 120 MHz, Test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)

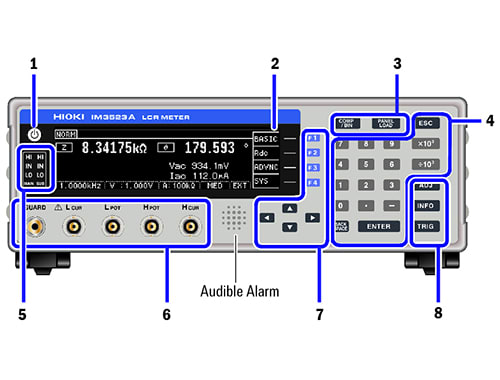

Front Panel

1. Power Switch: Switch with light indicators for machine state (on/off with power/no power)

2. Display Screen: Monochrome LCD display with measurement information and settings

3. Function Keys: Comparator/BIN settings and loads measurement conditions

4. Numerical Keypad: For entering numerical values

5. COMP Indicator LEDs: Displays the measurement value judgment results

6. Measurement Terminals: Connect cables and fixtures

7. Function Keys: Select corresponding item on right side of display

8. Function Keys: Compensation, scaling, previously configured conditions, and trigger measurements

In The Box:

• IM3523A LCR Meter

• Power Cord

• CD-R with manual and software

• Probes and fixture are sold separately
