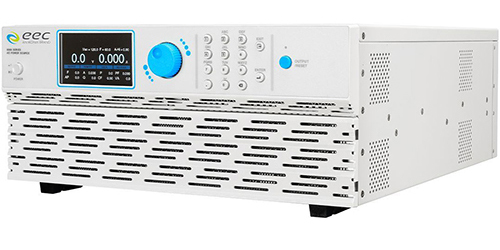

EEC 8540 AC DC Power Source, 4kVA, 310 VAC, 5-1200 Hz, CE Listed

Our Part #59221.1

Mfr Part #8540

EEC 8540
EEC
EEC

EEC 8540 AC DC Power Source, 4kVA, 310 VAC, 5-1200 Hz, CE Listed

Our Part #59221.1

Condition:New

Mfr Part #8540

$5,999.00EACH

4000VA, output voltage up to 310VAC, output frequency ranging from 5-1200Hz, CE listed

Features

  • High Power density with a reduced overall footprint
  • 14 pre-configured waveforms
  • Output voltage up-to 310VAC and output frequency from 5 – 1200 Hz
  • Advance Mode option

The 8540 provides 1Ø AC power and comes with unique features at a competitive price. Advanced mode adds the benefits of a sweep of voltage, frequencies, transients, and DC bias over the course of a single sequence or several different tests.

  • Safety Features: Safety Interlock, PLC Remote
  • Warranty: 5 Year Warranty
  • Dimensions (W x H x D): 16.92" x 6.92" x 19.96" (430 x 176 x 500 mm)
  • Weight: 61.7lbs (28KG)

In The Box

  • Model 8540
  • Interlock Disable Key
  • USB Cable
  • Shorting bar
  • Input / Output Terminal Protection Box
  • Rack Mount (2U) x 2
  • Handle for Rack (2U) x 2

Brand: EEC
Power Rating: 4000 VA
Phase: 1P
Output Voltage: 310 V
Output Current: 40 A
Series: 8500 Series
Depth: 19.96"
Frequency: 5-1200 Hz
Height: 6.92"
Width: 16.92"
