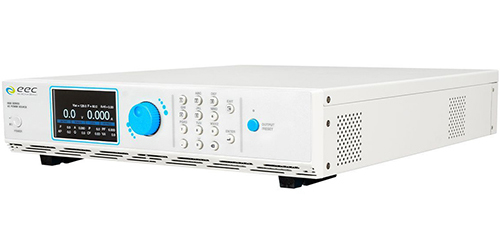

EEC 8505 AC+DC Power Source, 500VA, 310 VAC, 5-1200 Hz, CE Listed

Our Part #20002751

Mfr Part #8505

EEC 8505
EEC
EEC

EEC 8505 AC+DC Power Source, 500VA, 310 VAC, 5-1200 Hz, CE Listed

Our Part #20002751

Condition:New

Mfr Part #8505

$1,999.00EACH

500VA, output voltage up to 310VAC, output frequency ranging from 5-1200Hz, CE listed

Features

  • High Power density with a reduced overall footprint
  • 14 pre-configured waveforms - simulate nearly any abnormal condition on your DUT
  • Output voltage up-to 310VAC and output frequency from 5 – 1200 Hz
  • Advanced Mode - easily simulate voltage surges, voltage drops, voltage pulses, DC bias, and frequency sweeps

The 8505 provides 1Ø AC power and is manufactured for simulating common grid faults, voltage dips, and other power abnormalities. Advanced mode adds the benefits of a sweep of voltage, frequencies, transients, and DC bias over the course of a single sequence or several different tests.

  • Safety Features: Safety Interlock, PLC Remote
  • Warranty: 5 Year Warranty
  • Dimensions (W x H x D): 16.92" x 3.46" x 19.96" (430 x 88 x 500 mm)
  • Weight: 33lbs (15KG)

In The Box

  • Interlock Disable Key (1505) X1
  • USB Cable X1
  • Shorting bar X1
  • Input / Output Terminal Protection Box X1
  • Power Cord (125Vac/10A) X1
  • Rack Mount (2U) X2
  • Handle for Rack (2U) X2

Brand: EEC
Power Rating: 500 VA
Phase: 1P
Output Voltage: 310 V
Output Current: 5 A
Series: 8500 Series
Depth: 19.96"
Frequency: 5-1200 Hz
Height: 3.46"
Width: 16.92"
