Keysight E5061B/010/020/237/721/731/1E5/W7 ENA Vector Network Analyzer, 100 kHz to 3 GHz, 75 Ohm

ENA Series Responds to Various Measurement Needs, From LF to RF

The E5061B ENA Series from Keysight Technologies, Inc. is part of the widely recognized ENA Series network analyzers. It caters to a diverse array of measurement requirements for electronic components and circuits across various frequencies. This model is perfect for use in sectors like wireless communications, aerospace and defense, computing, medical, automotive, CATV, and many others.

About The E5061B/010/020/237/721/731/1E5/W7 Benchtop Network Analyzer, 100 kHz to 3 GHz

The E5061B XN3-class Essential Vector Network Analyzer (NA) options provide comprehensive functionality to support network and impedance measurements for basic RF network measurements. The established RF performance of the E5061/62A has been integrated into this new digital platform.

Configurations Include

• (010) Time domain/fault location analysis

• (020) Standard hard disk drive

• (237) S-parameter test set, 100 kHz to 3GHz, 75 Ω system impedance

• (721) Add GPIB interface

• (731) Add handler I/O interface

• (1E5) Add High stability time base

• (W7) Windows

Features And Specifications

• Source output level: -45 to +10 dBm (at 5 Hz to 3 GHz)

• Dynamic range: >120 dB (at 1 MHz to 3 GHz, IFBW = 10 Hz)

• Trace noise: 5 mdBrms (IFBW=3 kHz/Auto)

• 1 MΩ input: No

• DC bias source: No

• Frequency stability (CW accuracy): ±7 ppm ±1 mHz (standard)

• Number of channels/traces: 4-channel/4-trace

• Measured number of points per sweep: User definable from 2 to 1601

Time Domain/Fault Location Analysis

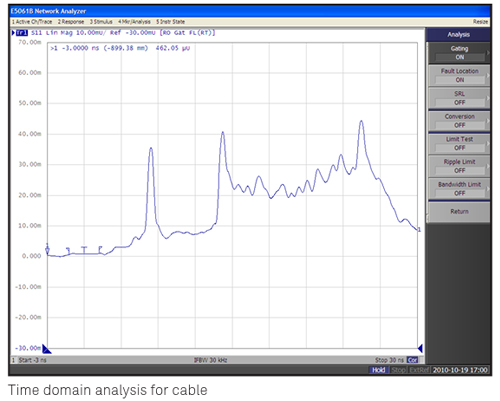

The time gating function is available in the time domain/faultlocation analysis function. This enables you to eliminate mismatch errors caused by test fixtures when testing CATV cables.

Expanded Frequency Range

An expanded lower-end frequency range down to 100 kHz allows you to test components that require measurements in the 100 kHz range, such as LAN filters and automotive antennas.

Internal Hard Disk Drive

Store and recall instrument states, calibration data, and trace data into internal hard drive. Trace data can be saved in CSV (comma separated value) format. All files are MS-DOS-compatible. Instrument states include all control settings, limit lines, segment sweep tables, and memory trace data. Internal hard disk drive (D:) can be accessed from an external Windows PC through LAN.

Series Front and Rear Panel Features

NOTE: Analyzers with options 115, 135, 215, 235,117, 137, 217, 237 have no gain-phase test port and probe power.

What's in the Box

• E5061B/010/020/237/721/731/1E5/W7 RF Network Analyzer

• Installation guide

• Power cable
