Chroma 19071 Hipot Tester, 5 kV AC, 50-60 Hz, RS-232 Standard, Sentry 10+ Replacement, 19070 Series

Chroma 19071 ACWV Hipot Tester

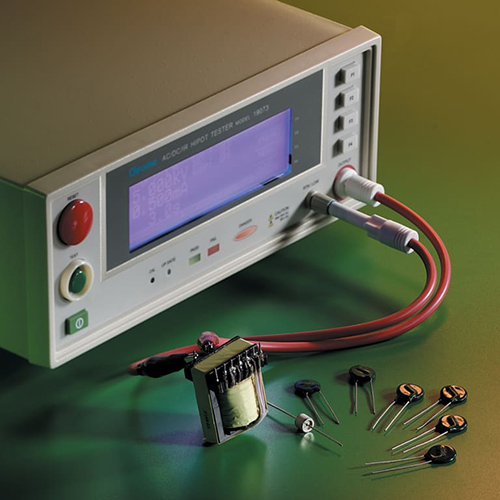

The Sentry 19071 provides AC hipot testing and is compact, lightweight, and affordable. With its small form factor, it can easily be transported on the production floor, and the large LCD provides clear measurement results. These valuable Hipot Testers are ideal for safety testing electronic components. Comes with a 2-year factory warranty and is a direct replacement for the Quadtech's Sentry 10 Plus.

Features

• AC hipot tester

• AC 5kV and DC 6kV output

• Ground continuity check

• Open Short Check(OSC) function

• GFI shutdown the instrument when the imbalance current > 0.5mA

• Pause mode

• Large LCD

• UL and TUV approved

• CE mark

• Programmable ramp/fall and test time

• Programmable high/low limit

• Save/Recall program test function

• Remote control and interface support

• 2-Year factory warranty

Complete Dielectric Testing Solution
The 19070 Series has 2 models available for selection: the 19071 and the 19073.
The 19071 is for AC Hipot testing while the 19073 combines both AC/DC hipot with IR measurement into a single compact unit.

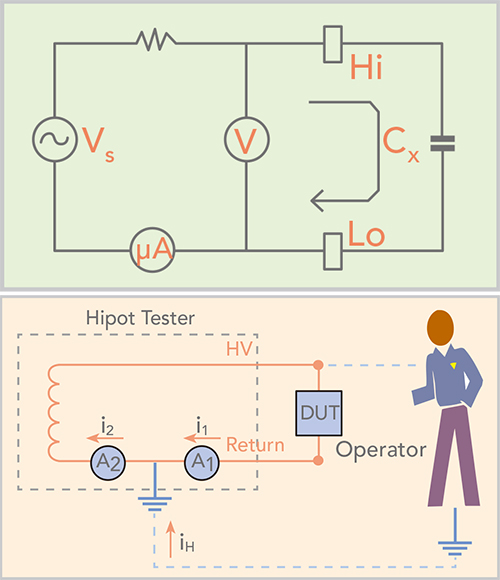

Open Short Check (OSC)

The OSC function is used to check whether the connection is an open circuit between the instrument and the DUT or if there is a breakdown inside the DUT before testing for electrical safety.

Flashover (ARC) Detection

The 19070 series is sensitive enough to monitor for current spikes even if they do not exceed the maximum trip current level.

Ground Continuity Check (GC)

All of the 19070 series testers have a ground continuity check feature to determine if the resistance between the ground pin of the power cord and any exposed metal on the product is less than 1Ω.

Ground Fault Interrupt (GFI)

GFI is required by the National Electrical Code in wet locations. Such devices automatically interrupt power when a ground current >0.5mA exists for more than a few milli-seconds to protect users.

Quick Discharge

For DC Hipot and IR tests, the DUT is discharged back through the HV transformer attaining a rapid and safe discharge.

Applications

• Production test for appliances, instruments and information technology equipment in compliance with UL, IEC, TUV and other standardssuch as EN 60335, EN 60950, EN 61010, CSA C22.2 No.1010.1, UL 3111 and UL 1950

• Transformer electrical safety tests

• Various electronic components tests

In The Box

• Chroma 19071 Hipot Tester

• Power cord

• User documentation

• RS-232 communication interface (built-in)
