Siglent SPD1168X DC Power Supply, Single Output, 16V, 8A, 128W, USB, LAN, SPD1000X Series

Siglent SPD1168X Programmable DC Power Supply

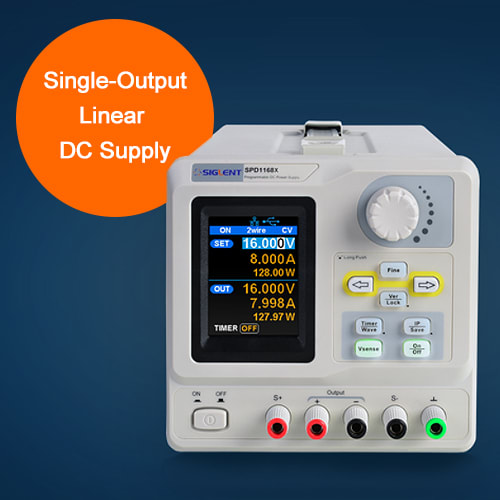

The Siglent SPD1168X DC power supply is a programmable linear DC power supply designed for high-precision bench testing, production support, and electronics development. As part of Siglent’s SPD1000X Series, the SPD1168X delivers a single-path programmable output of up to 16 V and 8 A with a maximum output power of 128 W. Its 2.8-inch true-color TFT-LCD display, real-time waveform display, remote computer control, USB Device and LAN interfaces, and EasyPower PC software support help engineers and technicians configure, monitor, and repeat power supply tests with confidence.

Specifications and Benefits

• 0 to 16 V, 0 to 8 A programmable DC output-Supplies flexible voltage and current control for powering circuits, components, and devices during design validation and bench testing.

• 128 W maximum output power-Provides enough capacity for a wide range of low-voltage electronic test and development tasks.

• 1 mV/1 mA minimum resolution-Enables precise adjustments for sensitive circuits where small voltage or current changes matter.

• 5-digit voltage and 4-digit current display-Improves readability and helps users monitor output settings and measurements accurately.

• Low ripple and noise of ≤ 350 uVrms/3 mVpp and ≤ 2 mArms-Helps deliver cleaner power for testing noise-sensitive devices and circuits.

• Fast transient response time of less than 50 μs-Supports stable output recovery during changing load conditions.

• Constant voltage load regulation of ≤ 0.01% + 2 mV-Helps maintain reliable voltage output when the connected load varies.

• Constant current line and load regulation of ≤ 0.2% + 3 mA-Supports consistent current delivery for current-limited testing

• 4-wire sense compensation output mode-Improves voltage accuracy at the load by compensating for voltage drops in long leads or high-resistance connections, up to 1 V maximum compensation.

• 2.8-inch true color TFT-LCD display with 5-digit voltage and 4-digit current display-Makes output settings and readings easy to view from the front panel.

• Front-panel timing output functions and real-time waveform display-Helps users observe and manage time-based power output behavior directly from the instrument.

• USB Device and LAN interfaces with Easypower software, SCPI support, and LabVIEW driver support-Enables remote control and integration into automated test environments.

• Five internal save/recall memory groups-Allows common setups to be stored and recalled quickly for recurring tasks.

• AC 100/120/220/230 V ±10%, 50/60 Hz compatible input-Supports use with different power grids.

• Short and overload protection functions-Adds protection for production and development applications.

• Intelligent temperature-controlled fan-Helps reduce noise while supporting reliable operation.

• Features a locking key-Prevents accidental adjustments to voltage or current, and stops unauthorized users from tampering with the equipment.

• Three-year warranty, excluding accessories-Adds confidence for long-term ownership and use.

Application Uses

The Siglent SPD1168X is well suited for testing and validation work that requires stable programmable DC power. Its high-resolution output, low ripple and noise, fast recovery time, timing output capability, real-time waveform display, and remote-control support make it useful for powering prototypes, checking circuit behavior under different load conditions, saving repeatable test setups, and supporting automated or PC-controlled workflows.

• Electronics research and development

• Production test and verification

• Benchtop circuit power and troubleshooting

• Automated test systems using USB Device or LAN control

• Precision voltage sourcing where long leads or connection resistance may affect accuracy

• Education and training labs that require programmable DC power with clear front-panel monitoring

What's in the Box

• SPD1168X DC Power Supply

• USB Cable -1

• Quick Start guide -1

• Power cord -1

• Output Test Cord (not shown) -2 Sets

• Certificate of Calibration (not shown) -1

Siglent SPD1168X FAQ

• What is the output range of the Siglent SPD1168X?
  The Siglent SPD1168X provides a single-path programmable DC output from 0 to 16 V and 0 to 8 A, with total output power up to 128 W. This makes it a practical choice for users who need adjustable low-voltage DC power for circuit testing, development, and production support.

• Does the SPD1168X support remote control or automated testing?
  Yes. The SPD1168X includes USB Device and LAN interfaces and is supplied with Easypower PC software. The datasheet also states support for SCPI and a LabVIEW driver, making the unit useful for remote computer control and automated test setups.

• How does the 4-wire sense function help during testing?
  The SPD1168X includes a 4-wire sense compensation output mode that uses a separate measurement circuit to compensate for voltage drops caused by long cables or high-resistance connections. With up to 1 V maximum compensation, this feature helps the power supply deliver more accurate voltage at the load.

• How do you program a timed voltage or current sequence on the SPD1168X?
  To program a timed voltage or current sequence on the Siglent SPD1168X, use the front-panel Timer menu to input up to 50 distinct steps of specific voltages, currents, and durations, then press Enter to run the automated sequence and view the real-time graphical waveform trend on the 2.8-inch display.
