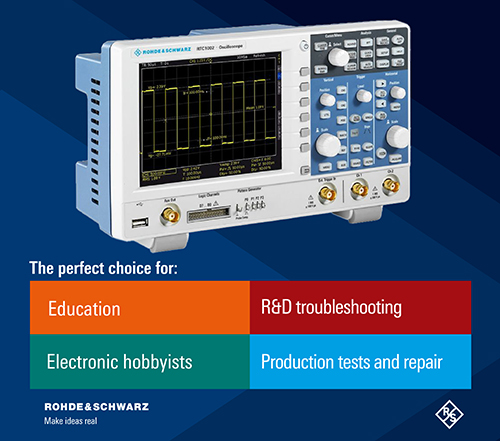

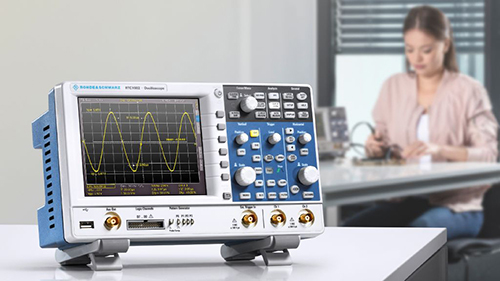

Rohde & Schwarz RTC1000 Series – RTC1K-COM2 Oscilloscope Bundle

From embedded developers to service technicians to educators – the wide range of functions address a broad group of users. State-of-the-art, high-performance technology in an extremely silent design meets the high requirements of today’s customers. These oscilloscopes include a wide range of upgrade options, providing true investment protection for the future.

The R&S RTC1000 is an X-in-one instrument that offers the functionality of an oscilloscope, logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter and component tester in a single instrument.

Key Facts (RTC1002):

• 300 MHz Bandwidth (Option included)

• MSO (Option included)

• 2 analog channels plus 8 digital channels with MSO option

• Maximum sampling rate (Gsamples/s) 1.25/channel, 2.5 interleaved

• 2 Msample memory depth

• State-of-the-art A/D converters for low-noise measurements

• 640 x 480 px. 6.5-inch VGA color display

• Wide selection of automatic measurement functions

• QuickView: key results at the press of a button

• Mask test: easy creation of a new mask with just a few keystrokes

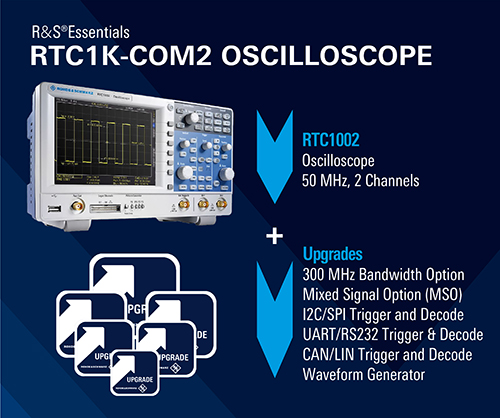

Bundle Includes (RTC1K-COM2):

• RTC1002 Oscilloscope

• RTC-B223 300 MHz Bandwidth option

• RTC-B1 - Mixed Signal Option (MSO)

• RTC-PK1 Application Bundle, containing:

  • RTC-B6 Waveform generator

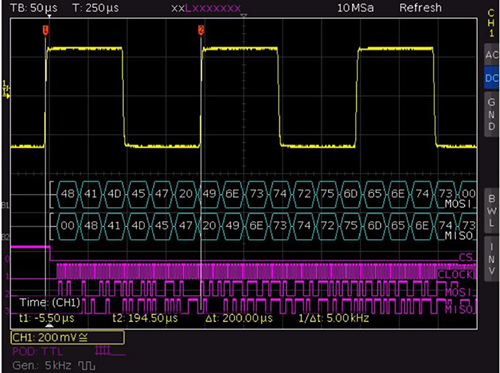

  • RTC-K1 I2C/SPI Trigger and Decode

  • RTC-K2 UART/RS232 Trigger and Decode

  • RTC-K3 CAN/LIN Trigger and Decode

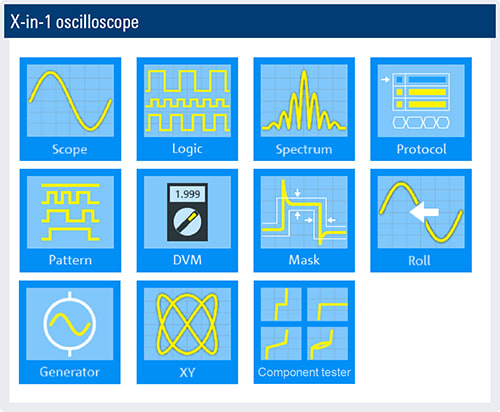

X-in-1 oscilloscope

• Oscilloscope

• Logic analyzer (RTC-B1)

• Protocol analyzer

• Waveform and pattern generator (RTC-B6)

• Digital voltmeter

• Component tester

• Frequency analysis mode

• Mask test mode

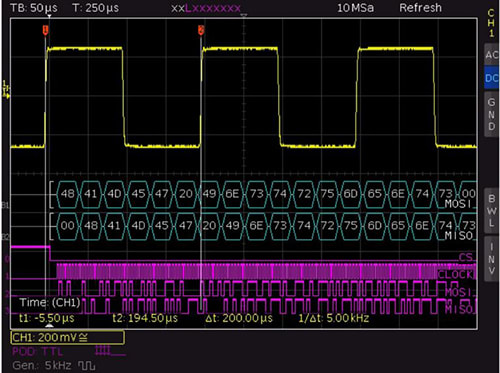

Top-class hardware-based acquisition for precise measurement results

With a sampling rate of up to 2 Gsample/s and a memory depth of up to 2 Msample, the R&S RTC1000 oscilloscope excels in its class. A waveform update rate of more than 10 000 waveforms/s ensures a responsive instrument that reliably catches signal faults. Included tools provide quick results, e.g. QuickMeas, mask tests, FFT, math, cursors and automatic measurements (including statistics)

Logic analysis with the MSO option

Eight additional digital channels

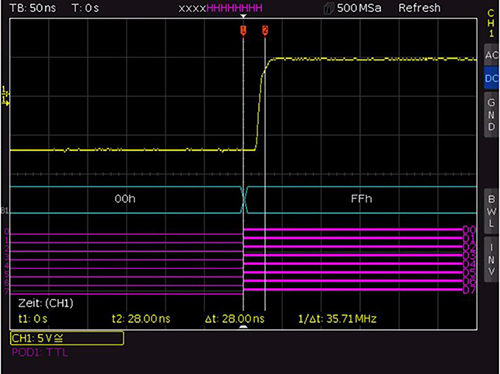

The R&S RTC-B1 option turns every R&S RTC1000 into an intuitive-to-use MSO with eight additional digital channels. The oscilloscope captures and analyzes signals from analog and digital components in an embedded design - synchronously and time-correlated to each other. For example, the delay between the input and output of an A/D converter can be conveniently determined using cursor measurements.

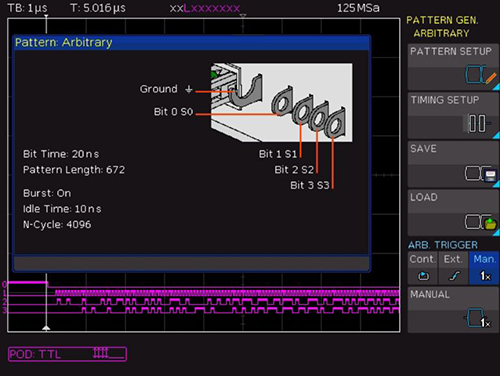

Waveform and pattern generator

Generate analog and digital stimuli

The integrated R&S RTC-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware. In addition to common sine, square/pulse, ramp and noise waveforms, it outputs 4-bit patterns. Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms. You can preview signals before playing them back to quickly check signal correctness. Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN are provided.

In The Box:

• RTC1002 Oscilloscope (RTC1K-COM2)

• RT-ZP03S single-ended passive probe for each channel

• Power Cord

• Getting started manual

• Safety Instructions
